NRS Z-Drag Rescue Kit
DISCONTINUED
This item has been discontinued and is no longer available for purchase, but we've saved this page for your reference.
- Overview Overview The NRS Z-Drag Rescue Kit is a complete swiftwater rescue kit. With everything you need for rescuing a pinned boat, including a reference crib sheet, the Z-Drag Kit is a great investment in keeping...
- Technical Specifications Technical Specifications
SKU: ESA_NSZDRAGKIT-3/8GrabLineNFPS
The NRS Z-Drag Rescue Kit is a complete swiftwater rescue kit. With everything you need for rescuing a pinned boat, including a reference crib sheet, the Z-Drag Kit is a great investment in keeping your boating partners and your rafting rig safe.
- Complete hardware kit for swiftwater rescues
- With this kit you can set up a 3:1 mechanical advantage Z-drag and increase your pulling effort
- Includes rope, and all the carabiners, pulleys, tubular webbing, and prussik cord needed for setup
- All the gear packs into the included Purest Mesh Duffel Bag
- Crib Sheet shows Z-drag and other mechanical advantage systems, plus rescue rope knots
The Crib Sheet is a good reminder tool, but we also recommend you take a river rescue class. There you'll not only get to practice the rescue systems, you'll also learn other skills for protecting yourself and your boating companions.
Technical Specifications

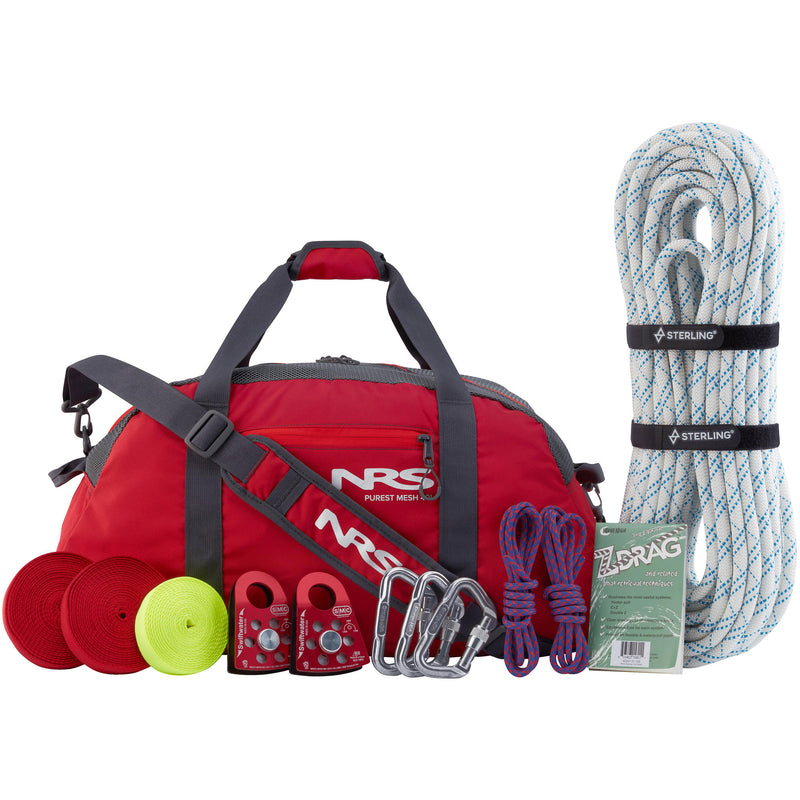

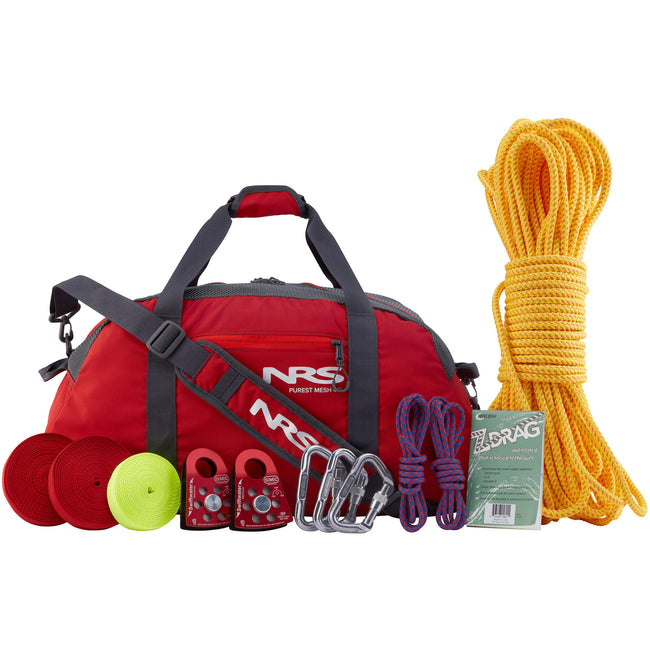

What’s Included:
- 150' of Sterling rope - 3/8" Grabline (yellow) or 1/2" HTP (white)
- 3 - Omega Standard Locking D Carabiners
- 2 - SMC 2" Swiftwater Pulleys
- 2 - 15' pieces of Red 1" Tubular Webbing
- 1 - 10' piece of Yellow 1" Tubular Webbing
- 2 - 6' pieces of 6 mm Prusik Cord
- 1 - Z-Drag Rescue Crib Sheet
- 1 - NRS 40L Purest Mesh Duffel Bag

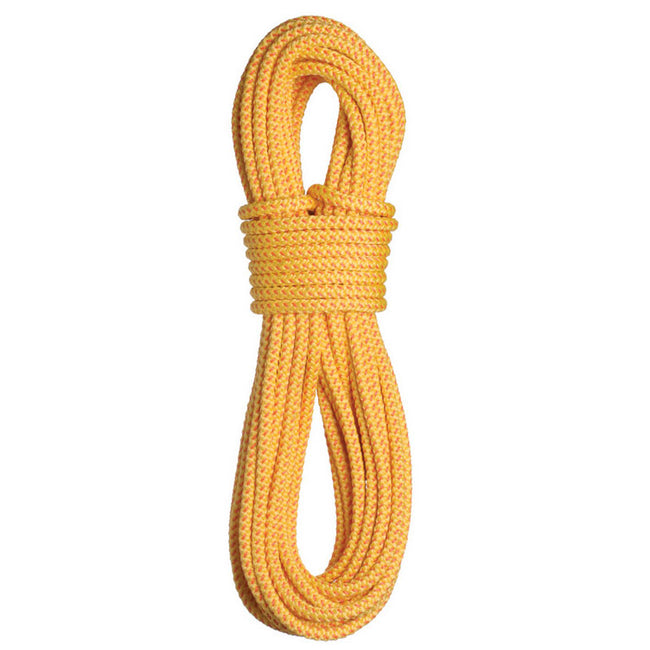

GrabLine has a high-tenacity polypropylene "tread-like" sheath pattern, giving both rescuer and victim gripping power while also providing buoyancy. The nylon core adds strength and keeps the rope flexible for storage and deployment.

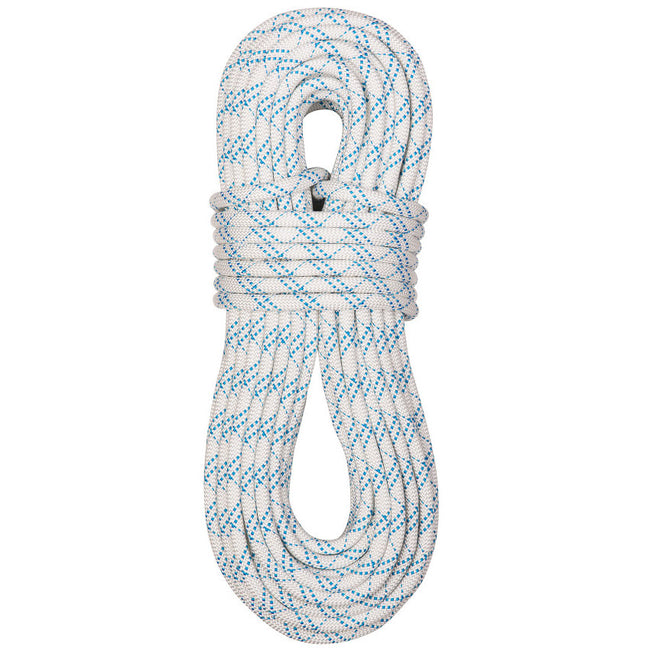

Super-durable, low-stretch HTP Static Rope features a unique sheath construction that inhibits picking and stays firm for effective handling despite the load. Its strength and durability make it a great choice for specialized rigging, speed lines and hauling applications.
| Rope | Sterling 3/8" NFPA GrabLine | Sterling 1/2" HTP Static |
| Color | Yellow | White |
| Core/Sheath | Nylon/Polypropylene | Polyester/Polyester |
| MBS Rating | 3282 lbs. (14.6 kN) | 9081 lbs. (40.4 kN) |
| Length | 150' | 150' |
| Diameter | 9.5mm | 12.5 mm |
| Elongation at 300 lbs. | 4.2% | 0.9% |
| Weight | 5 lbs. | 12 lbs. |
| Pulley | SMC Swiftwater |
| Material | High-quality aluminum |
| Axle | Ball Bearing |
| Sheave | 2" aluminum |
| Strength | 7644 lbs. (34 kN) |
| Max Rope Size | 13 mm (0.5") |
| Dimensions | 4" x 3" x 1.25" |
| Weight | 6 oz. (170 g) |
