- Overview Overview The NRS Universal Seat Mount lets you attach a standard or swiveling NRS Padded Seat to any NRS raft frame crossbar or other 1 5/8-in diameter pipe. Hot-forged aluminum construction aligns the crys...
- Technical Specifications Technical Specifications
SKU: ARA_NSUNISM

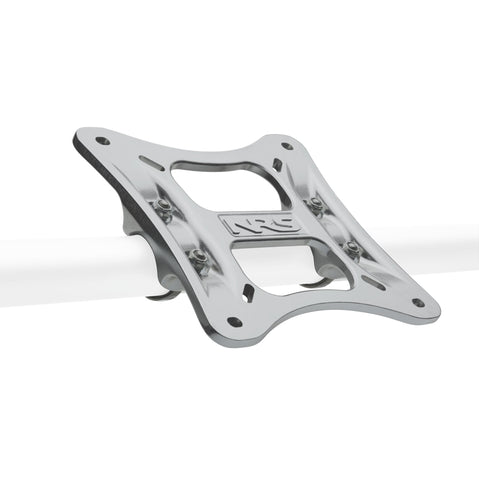

The NRS Universal Seat Mount lets you attach a standard or swiveling NRS Padded Seat to any NRS raft frame crossbar or other 1 5/8-in diameter pipe. Hot-forged aluminum construction aligns the crystalline structure of the metal, creating a super strong piece that is also lightweight.
- U-bolt attachment system lets you position your seat where you want it and adjust the angle
- Molded ridges on the gripping surfaces provide excellent holding strength
- Universal bolt holes accept NRS standard or swiveling seats
- Includes coined (flattened curve) U-bolts, washers and nylon lock nuts
- Backed by the NRS Rock Solid guarantee
Technical Specifications
Material | Hot-forged 6061-T6 aluminum alloy |
Dimensions | 8.5" x 9" x 5/16" |
Outer Bolt Hole Pattern | 7" x 7.5" |
Inner Bolt Hole Pattern | 4 3/4"-5 1/2" x 4 3/4"-5 1/2" |
Weight | 2.25 lbs. |

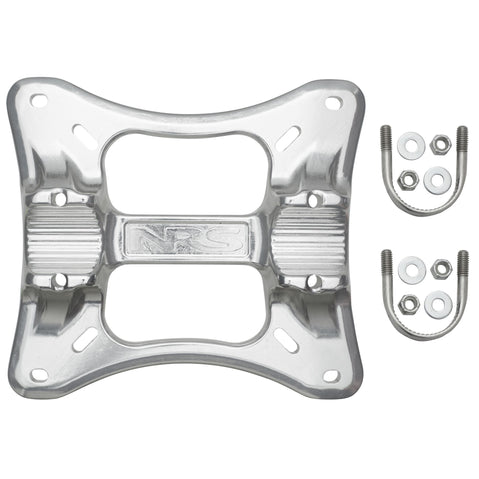

What's Included:
- 1 Aluminum plate
- 2 U-bolts
- 4 Nylon lock nuts
- 4 Washers

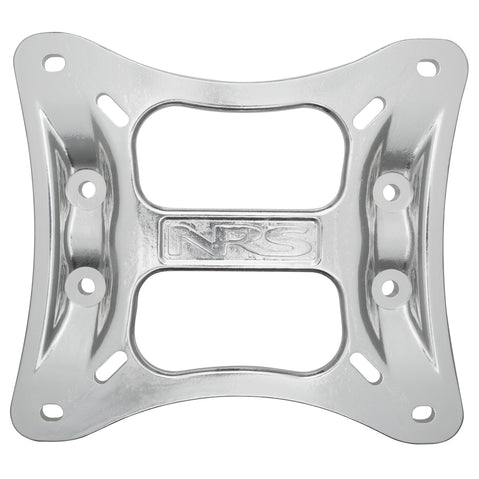

There are two sets of bolt holes. The outer set matches with NRS padded raft seats. The inner set has elongated holes that accommodate smaller seat bolt patterns.
Product Tip: When installing seat bolts, thread all four of them in loosely by hand before tightening any of them with a wrench. This will prevent cross threading. Tighten seat bolts until lock washers are fully compressed. Do not over-tighten the bolts; that can strip out the seat's inner connector.
A | B | C | D | E |
9 1/8" | 7" | 7 1/2" | 4 3/4" - 5 1/2" | 4 3/4" - 5 1/2" |
