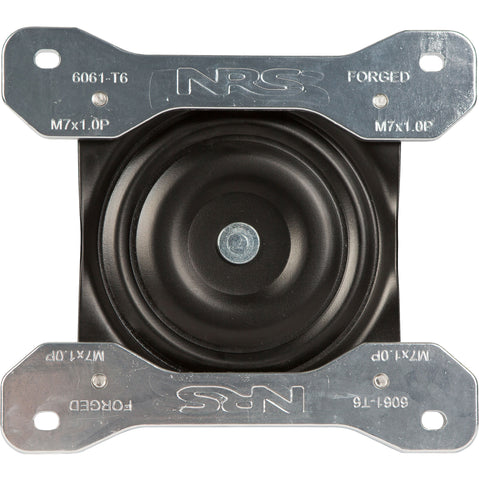

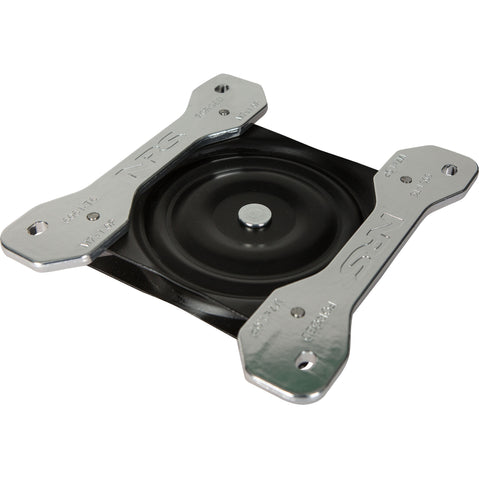

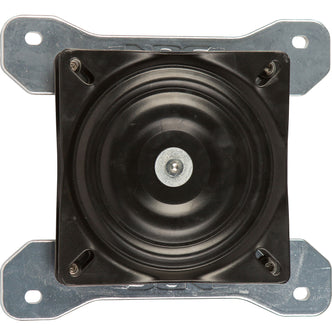

- Overview Overview The NRS Swivel and Plates for Padded Raft Seats lets you turn any NRS Padded Raft Seat into a swivel seat that allows the seat to rotate 360 degrees. Simply bolt the plates to your seat, then bolt ...
- Technical Specifications Technical Specifications
SKU: ARA_NSSEATPLASW
MPN: 94038.01.100
The NRS Swivel and Plates for Padded Raft Seats lets you turn any NRS Padded Raft Seat into a swivel seat that allows the seat to rotate 360 degrees. Simply bolt the plates to your seat, then bolt the swivel base to your seat bar or the Universal Seat Mount (sold separately).
- Swivel base allows the seat to rotate 360 degrees
- Two hot-forged aluminum plates
- Two aluminum plates have holes in the bolt pattern for the NRS Low-Back and High-Back Seats
- Use the bolts you have with your seat to attach it to the aluminum plates
- Older seat bars that don't have holes, just drill four 1/4 inch holes in 5.25-inch x 5.25-inch pattern
- Mounting hardware included
Technical Specifications
Seat Plate Measurements | 8.25” x 9.25” |
Swivel Plate Measurements | 6.25” x 6.25” |
Seat Plate Bolt Hole Pattern | 7” x 7.5” |
Swivel Plate Bolt Hole Pattern | 5.25” x 5.25” |
Weight | 3.125 lbs. |
What’s Included:
- 1 swivel base
- 2 hot forged aluminum plates
- 4 1/4" - 20 x 1" bolts
- 4 lock nuts
- 8 flat washers
A | B | C | D | E | F |
9 1/4" | 8 1/4" | 7 1/2" | 7" | 6 3/8" | 4 3/4" - 5 1/2" |
Overview
Product title: NRS Swivel and Plates for Padded Raft Seats
SKU: ARA_NSSEATPLASW
MPN: 94038.01.100
The NRS Swivel and Plates for Padded Raft Seats lets you turn any NRS Padded Raft Seat into a swivel seat that allows the seat to rotate 360 degrees. Simply bolt the plates to your seat, then bolt the swivel base to your seat bar or the Universal Seat Mount (sold separately).
- Swivel base allows the seat to rotate 360 degrees
- Two hot-forged aluminum plates
- Two aluminum plates have holes in the bolt pattern for the NRS Low-Back and High-Back Seats
- Use the bolts you have with your seat to attach it to the aluminum plates
- Older seat bars that don't have holes, just drill four 1/4 inch holes in 5.25-inch x 5.25-inch pattern
- Mounting hardware included
Technical Specifications
Seat Plate Measurements | 8.25” x 9.25” |
Swivel Plate Measurements | 6.25” x 6.25” |
Seat Plate Bolt Hole Pattern | 7” x 7.5” |
Swivel Plate Bolt Hole Pattern | 5.25” x 5.25” |
Weight | 3.125 lbs. |
What’s Included:
- 1 swivel base
- 2 hot forged aluminum plates
- 4 1/4" - 20 x 1" bolts
- 4 lock nuts
- 8 flat washers
A | B | C | D | E | F |
9 1/4" | 8 1/4" | 7 1/2" | 7" | 6 3/8" | 4 3/4" - 5 1/2" |
