- Overview Overview The Malone MicroSport LowBed Trailer with 2nd Tier makes loading and unloading heavy kayaks simpler and safer. The load bar support system extensively lowers the overall bar height to minimize your...
- Technical Specifications Technical Specifications
SKU: ARR_MATMICRO464LBT
MPN: MPG464-LBT

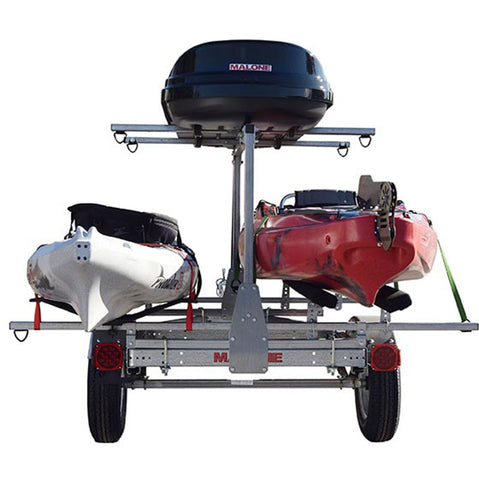

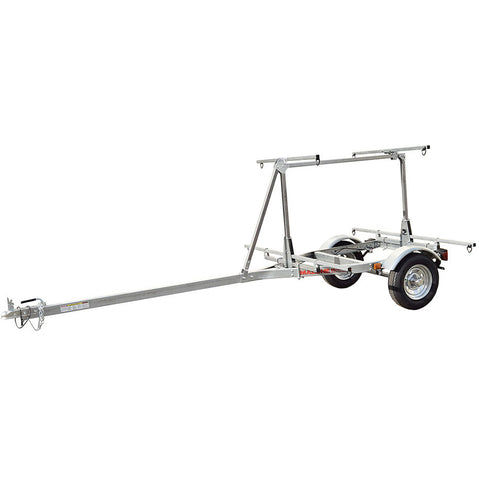

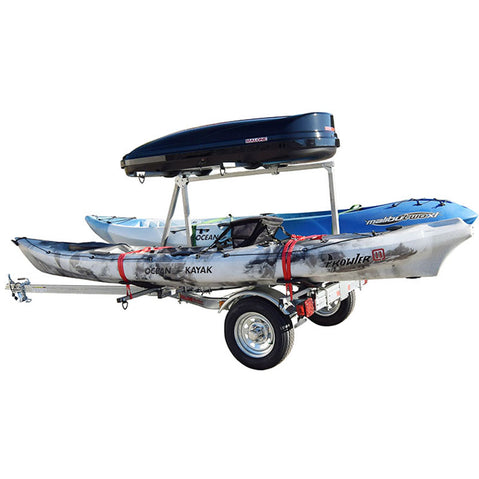

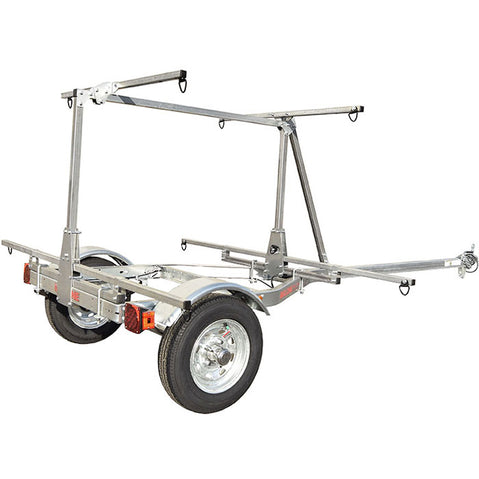

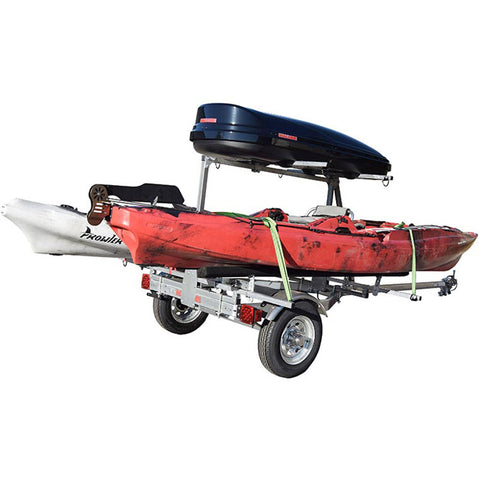

The Malone MicroSport LowBed Trailer with 2nd Tier makes loading and unloading heavy kayaks simpler and safer. The load bar support system extensively lowers the overall bar height to minimize your need to lift larger boats while the upper level gives you additional storage options.
- Pre-assembled hubs for a clean and simple installation
- Galvanized slot wheels with sealed marine-grade bearings

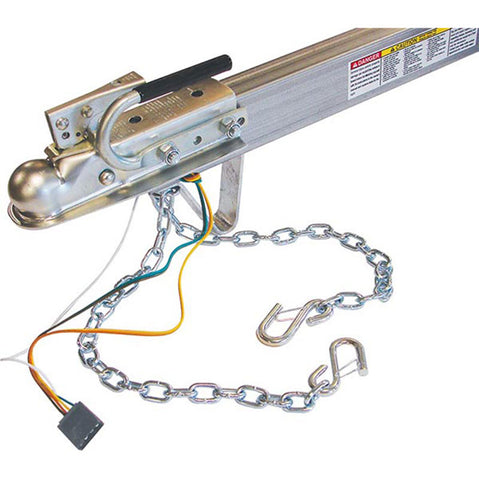

- Reinforced steel tongue can transport boats up to 20 feet in length
- Steel rectangular load bars with D-ring tie-down points fit most manufacturer’s attachments
- SaddleUp Pro cradles fit most kayaks, including those with a center keel or pontoon-style bottom
- High-speed DOT-approved wheels can handle highway travel
- Marine-grade galvanized steel construction for years of service
- Typically assembles in 3-4 hours with standard tools, complete instructions included
- Made in the USA
- Kayaks not included
- 5-year manufacturer warranty against any manufacturing and material defects
Please note: Assembly required. Due to shipping restrictions, this item can only be shipped via ground services to a US address. No expedited or international shipping options are available. Trailer MCO paperwork is in box #2 of the MicroSport.
Please note: This product can only be shipped to U.S. addresses. If you attempt to order this item and have it shipped outside the US, we will contact you and cancel the order.
Technical Specifications
Construction | 11-gauge pre-galvanized steel |
Weight Capacity | 800 lbs. |
Maximum Recommended Kayak Length | 20' |
Crossbar Length | 78" |
Crossbar Spread | 44 - 63" |
Crossbar Height (From The Ground) | 22" |
Hitch Ball Size | 2" Class II |
Wiring Harness | Flat 4 connection |
Tongue Length | 8' |
Tongue Height | 18" |
Tongue Weight | 25 lbs. |
Wheel Size | 12" |
Recommended Tire Pressure | 35 - 40 PSI |
Axle Length | 54" |
Axle Rating | 1800 lbs. |
Overall Trailer Dimensions | 159" L x 78" W |
Trailer Width (Without Crossbars) | 55" |
Frame Width (Within The Fenders) | 40" |
Trailer Weight | 197 lbs. |
2nd Tier Kit:
Material | Galvanized 11-gauge steel |
Load Capacity | 100 lbs. |
Crossbar Length | 50" |
Crossbar Spread (Front-Back) | 48" |
Crossbar Spread (Upper-Lower) | 35" |
Weight | 46.8 lbs. |
MicroSport LowBed 2 Boat Trailer with 2nd Tier Owner's Manual
Malone Trailer Maintenance Manual
What’s In The Boxes (5 cartons total):
- 1 Microsport LowBed trailer
- 1 2nd Tier Kit with Load Bars
- 2 High-speed wheels
- 1 Reinforced steel tongue
- Instruction Manual & Registration Documentation
