- Overview Overview The Malone MicroSport LowBed 2-Boat Bunk package with 2nd Tier is one of the most option-rich trailers. The load bar support system lowers the overall bar height to minimize your need to lift large...
- Technical Specifications Technical Specifications
SKU: ARR_MATMICRO464LBTB
MPN: MPG464-LBTB

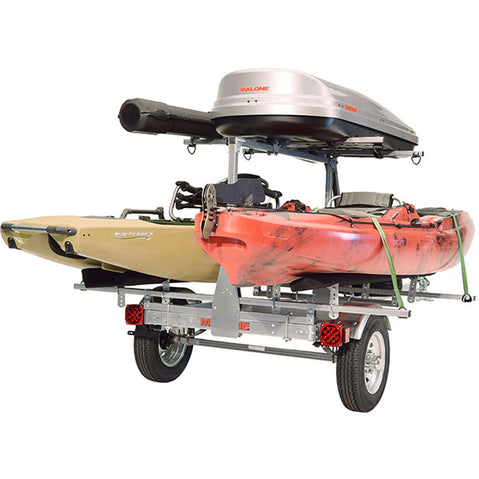

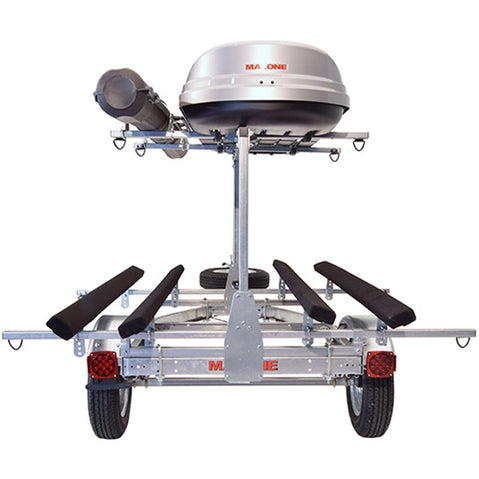

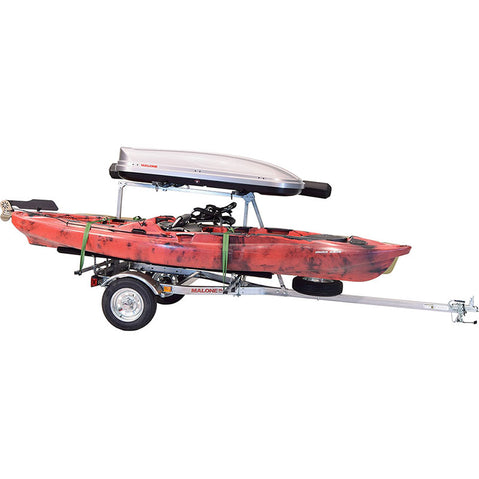

The Malone MicroSport LowBed 2-Boat Bunk package with 2nd Tier is one of the most option-rich trailers. The load bar support system lowers the overall bar height to minimize your need to lift larger boats while the fully loaded upper lever gives you additional storage options.

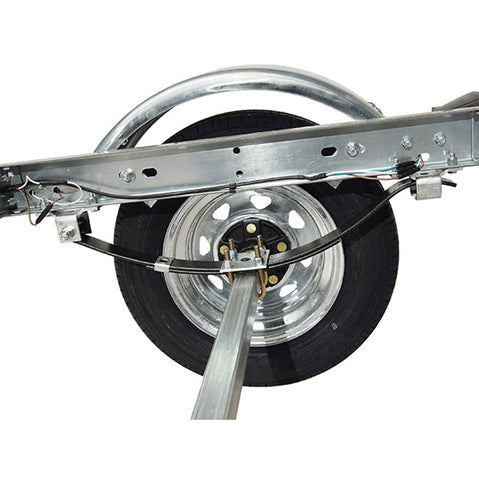

- Pre-assembled hubs for a clean and simple installation
- Galvanized slot wheels with sealed marine-grade bearings
- Reinforced steel tongue can transport boats up to 20 feet in length
- Steel rectangular load bars with D-ring tie-down points fit most manufacturer’s attachments
- Locking mid-sized cargo box is perfect for holding paddles, PFDs and other paddling gear
- High-speed DOT-approved wheels can handle highway travel
- Marine-grade galvanized steel construction for years of service
- Typically assembles in 3-4 hours with standard tools, complete instructions included

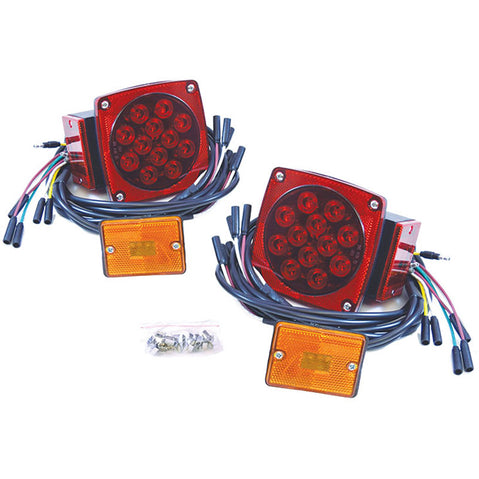

- Submersible LED lighting
- Made in the USA
- Kayaks not included
- 5-year manufacturer warranty against any manufacturing and material defects
Please Note: Some brands may not be shipped internationally. This item can only be shipped to U.S. addresses. We would love to ship the item, please be sure the address provided upon checkout is within the U.S. Otherwise, we will contact you via email to advise that your order has been canceled due to the shipping restriction.
Technical Specifications
MicroSport LowBed Trailer:
Construction | 11-gauge pre-galvanized steel |
Weight Capacity | 800 lbs. |
Maximum Recommended Kayak Length | 20' |
Bunk Dimensions (Each) | 84" long x 4" wide x 2" thick |
Bunk Height (From The Ground) | 22" |
Hitch Ball Size | 2" Class II |
Wiring Harness | Flat 4 connection |
Tongue Length | 8' |
Tongue Height | 18" |
Tongue Weight | 25 lbs. |
Wheel Size | 12" |
Recommended Tire Pressure | 35 - 40 PSI |
Axle Length | 54" |
Axle Rating | 1800 lbs. |
Overall Trailer Dimensions | 159" L x 78" W |
Trailer Width (Without Crossbars) | 55" |
Frame Width (Within The Fenders) | 40" |
Trailer Weight | 197 lbs. |
2nd Tier Kit:
Material | Galvanized 11-gauge steel |
Load Capacity | 100 lbs. |
Crossbar Length | 50" |
Crossbar Spread (Front-Back) | 48" |
Crossbar Spread (Upper-Lower) | 35" |
Weight | 46.8 lbs. |

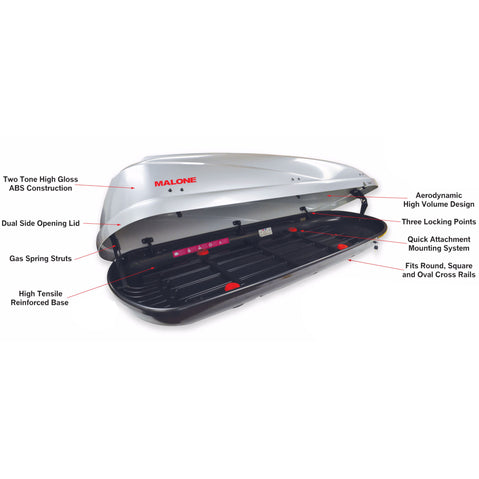

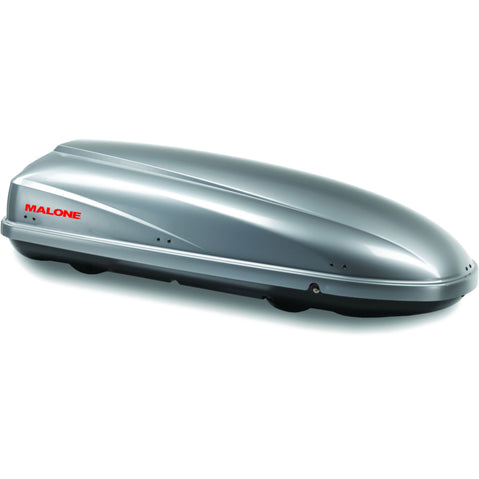

Cargo16 Rooftop Box:
Volume | 16.25 ft3 |
Load Capacity | 165 lbs. |
Interior Length | 75.5" |
Exerior Length | 76.4" |
Exerior Width | 27.9" |
Exerior Height | 18.9" |
Construction | High-gloss ABS |

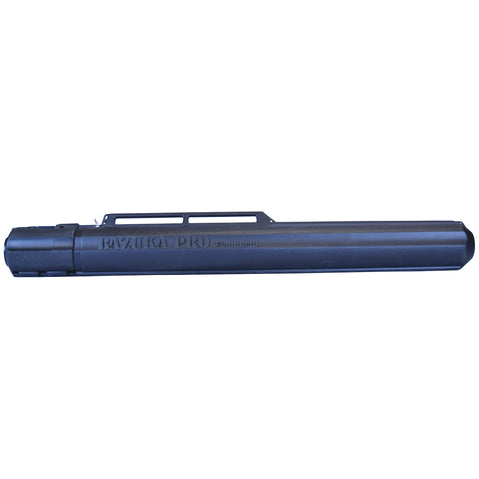

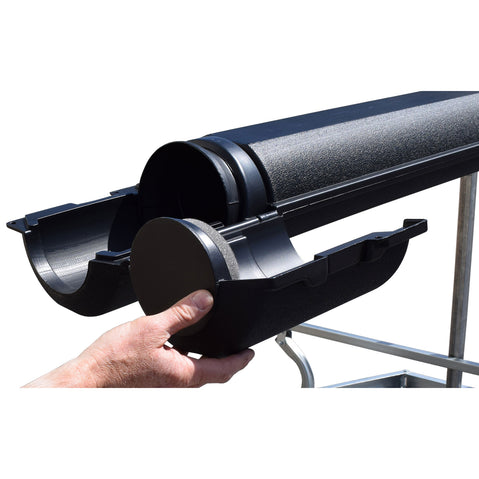

Fishing Rod Storage Tube:
Rod Capacity | Up to 6 oversized fishing rods |
Length | 73 - 102" |
Diameter | 6" |
Height | 4.5" |
Malone LowBed Trailer with 2nd Tier Owner's Manual
Malone Trailer Maintenance Manual
What’s In The Boxes (10 Cartons Total):
- 1 MicroSport LowBed trailer (assembly required)
- 2 High-speed wheels
- 1 Reinforced steel tongue
- 1 2nd Tier Kit with load bars
- 1 Cargo16 rooftop box
- 1 Fishing Rod Storage Tube
- 1 Spare tire with locking attachment
- Instruction manual & registration documents
