- Overview Overview Capable of hauling loads up to the largest loads, the Malone MegaSport Outfitter 3-Tier Kayak Trailer is perfect for commercial and large-scale use. Proudly made in the USA, this trailer is ready t...
- Technical Specifications Technical Specifications
SKU: ARR_MATMEGOUT3
MPN: MPG550-O

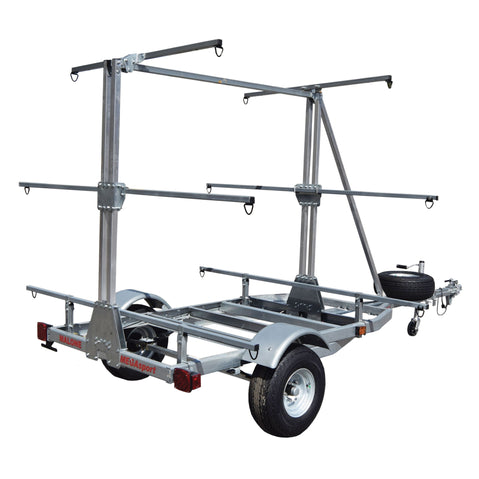

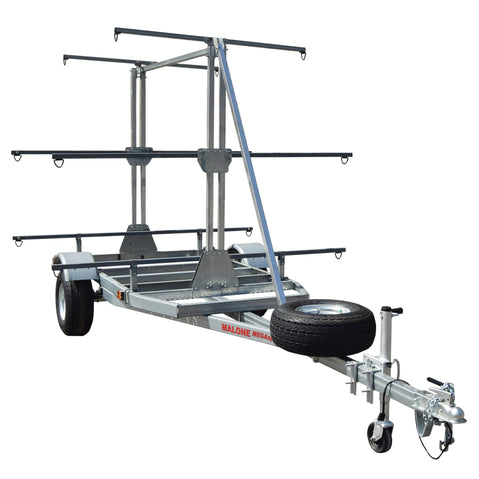

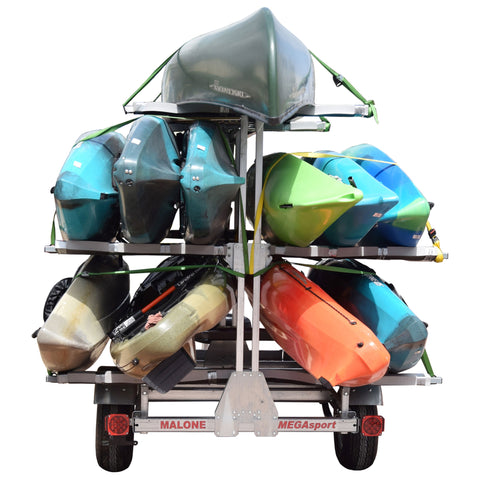

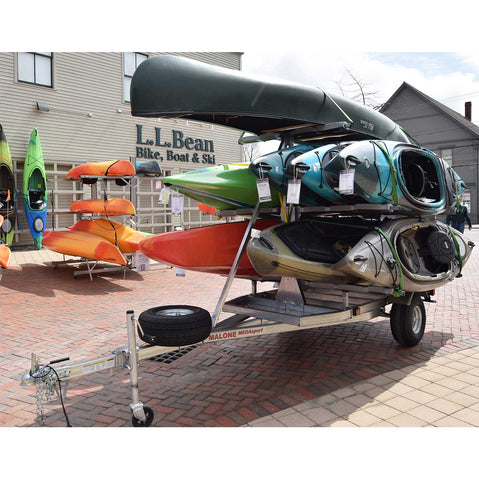

Capable of hauling loads up to the largest loads, the Malone MegaSport Outfitter 3-Tier Kayak Trailer is perfect for commercial and large-scale use. Proudly made in the USA, this trailer is ready to take on the most rigorous demands of your biggest adventures.
- Multi-level high-capacity trailer
- Marine-grade 11-gauge pre-galvanized steel construction
- Heavy-duty leaf spring suspension
- 3-tier steel load bar design
- Extra-long reinforced tongue
- Lift handle & crank-style jackstand allow the trailer to be easily moved & positioned
- DOT & Transport Canada approved lighting & tires
- Pre-fitted electrical, system & chassis components
- Assembles in 2-3 hours, complete instructions included
- Made in the USA
- 5-year manufacturer warranty
Please note: Assembly required. Due to shipping restrictions, this item can only be shipped via truck freight services to a US address. Trailer ships on an eight-foot pallet. No expedited or international shipping options are available. Trailer MCO paperwork is in box #3 of the Megasport.
Technical Specifications
Trailer Load Capacity | 1000 lbs. |
Axle Capacity | 2000 lbs. |
Suspension Capacity | 1000 lbs. |
Wheels/Tires Capacity | 1650 lbs. |
Maximum Recommended Boat Length | 21' |

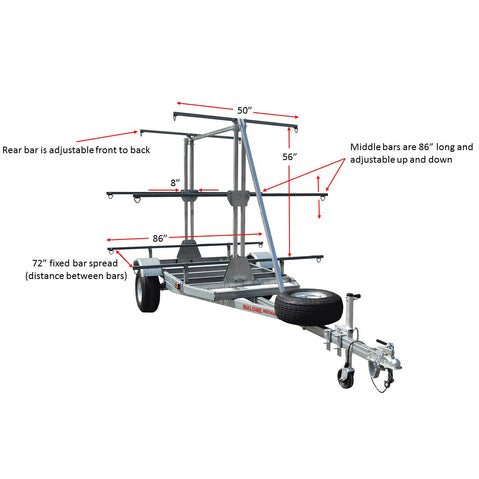

Lower & Middle Crossbar Length | 86" |
Upper Crossbar Length | 55" |
Crossbar Spread | 72" |
Hitch Size | 2" Class II w/ Flat 4 Wiring |
Tongue Length | 8' |
Tongue Height | 16" |
Tongue Weight | 63 lbs. |
Wheel Size | 10" D x 8" W |
Trailer Dimensions | 14' 6" L x 86" W x 84" H |
Trailer Weight | 446 lbs. |
What's In The Box:
- 1 MegaSport Base Trailer
- 2 High Speed Wheels
- 1 Full-Size Spare Tire With Locking Attachment
- 1 Reinforced Tongue
- 2 Sets of 86-inch Load Bars (4 Bars Total)
- 1 Set of 55-inch Load Bars (2 Bars Total)
- 1 Crank Assisted Jack Stand with Wheel
- 1 Class II 2-Inch Coupler with Safety Chains
- DOT Approved Lighting & Sealed Bearings
- Instruction Manual & Registration Documentation
Malone MegaSport Trailer Assembly Instructions
