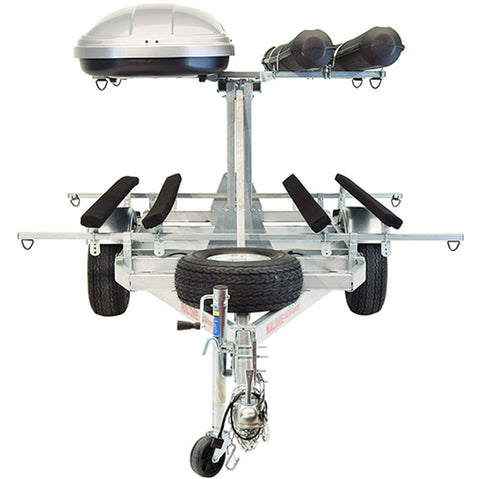

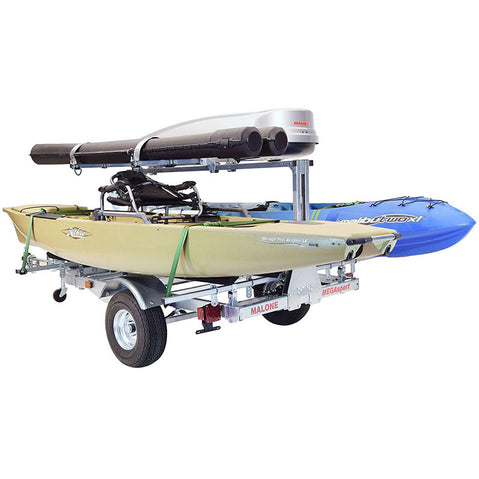

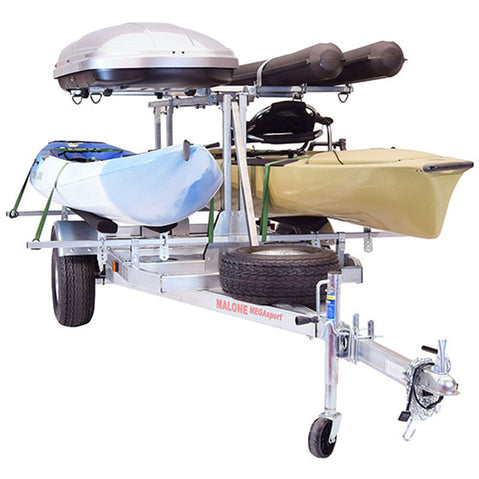

Product title: Malone MegaSport LowBed 2-Boat Bunk-Style Kayak Trailer with 2nd Tier
SKU: ARR_MATMEGA550LBB
MPN: MPG550-LBB

Built specifically to meet the needs of kayak anglers, Malone MegaSport LowBed trailer packages makes loading and traveling simpler and safer. The LowBed minimizes your need to lift boats, and the fully loaded 2nd Tier adds storage options. From top to bottom, the MegaSport is a pro-level offering.

  • Pre-assembled and tested hubs, electrical system and chassis components simplify assembly
  • DOT-approved sealed marine-grade bearings and submersible Plug & Play LED lighting

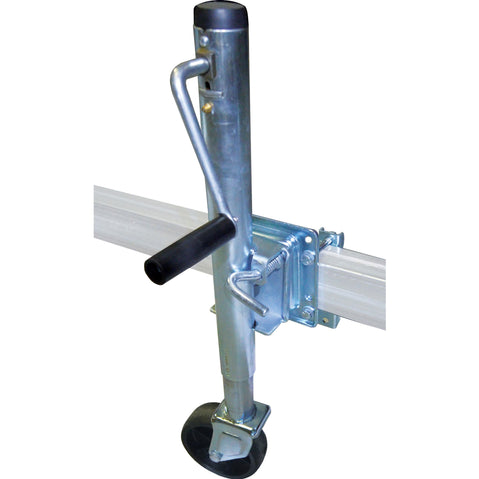

  • Extended tongue with galvanized crank-assist pivoting jack stand for easy handling
  • Lower square load bars and second tier load bars fit nearly all rack accessories
  • Extra-long bunks fit nearly any hull configuration and are great for larger boats

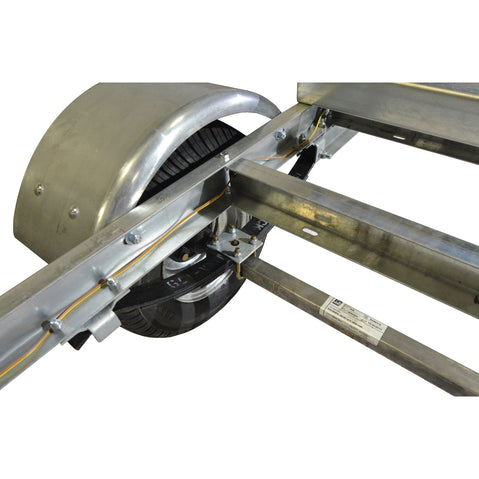

  • Heavy-duty triple leaf spring suspension
  • Locking mid-sized cargo box is perfect for holding paddles, PFDs and other paddling gear
  • Marine-grade galvanized steel construction for years of service
  • Typically assembles in four to five hours with standard tools, complete instructions included
  • Made in the USA
  • 5-year manufacturer warranty against any manufacturing and material defects

Please Note: Some brands may not be shipped internationally. This item can only be shipped to U.S. addresses. We would love to ship the item, please be sure the address provided upon checkout is within the U.S. Otherwise, we will contact you via email to advise that your order has been canceled due to the shipping restriction.

Technical Specifications

MegaSport LowBed Trailer:

Construction11-gauge pre-galvanized marine-grade steel
Load Capacity1000 lbs.
Maximum Recommended Boat Length20’
Lower Crossbar Length86"
Lower Crossbar Spread53 - 72"
Bunk Dimensions (Each)84" long x 4" wide x 2" thick
2nd Tier Crossbar Height (From Ground)25"
2nd Tier Crossbar Length58”
2nd Tier Crossbar Spreadup to 72"
2nd Tier Crossbar Height (From Ground)56”
2nd Tier Weight Capacity150 lbs.
Hitch Ball Size2" Class II
Wiring HarnessFlat 4 connection
Tongue Length8'
Tongue Height16"
Tongue Weight63 lbs.
Wheel Size10" D x 8" W high-speed wheels
Recommended Tire Pressure35 - 40 PSI
Jack Stand Wheel Size5.5"
Trailer Dimensions14' 6" (174") x 86" W
Trailer Width (Without Crossbars)68" W
Trailer Weight425 lbs.

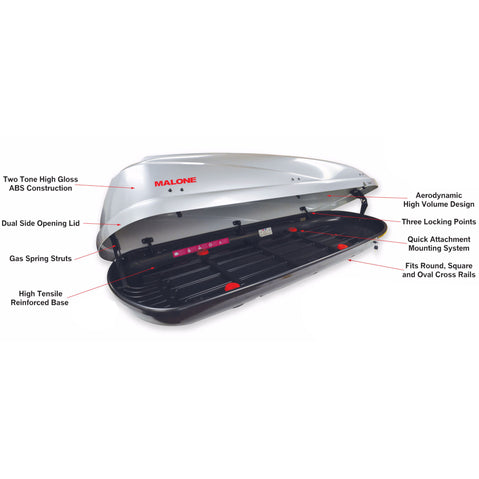

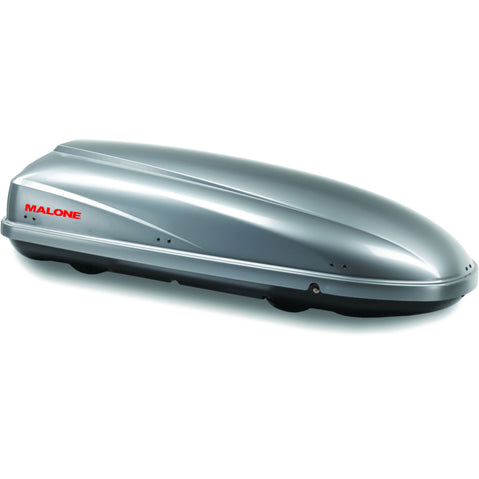

Cargo16 Rooftop Box:

Volume16.25 ft3
Load Capacity165 lbs.
Interior Length75.5"
Exerior Length76.4"
Exerior Width27.9"
Exerior Height18.9"
ConstructionHigh-gloss ABS

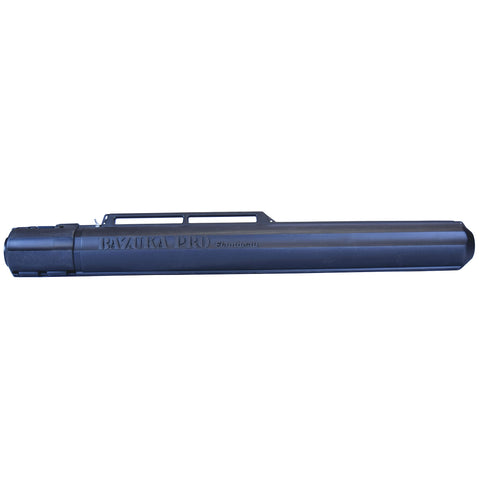

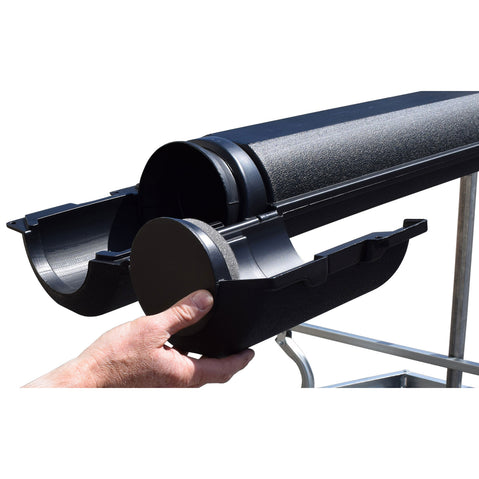

Fishing Rod Storage Tube:

Rod CapacityUp to 6 oversized fishing rods
Length73 - 102"
Diameter6"
Height4.5"

What’s In The Boxes (14 Cartons Total):

  • 2 High Speed Wheels - 21” Diameter Tires / 10” Diameter Rims
  • 1 MPG540 Spare Tire w/lock
  • 2 MPG541 Rod Storage Tube
  • 2 MPG561 Large Kayak Bunk Kit
  • 1 MPG910 Profile™ Roof Box
  • 1 Custom 2nd Tier Kit
  • 1 Reinforced Tongue
  • 1 Tongue Kick Stand
  • 1 Tongue Lift Handle
  • 2 86" Wide Lower Load Bars
  • 2 58" Wide Upper Load Bars
  • DOT Approved LED Lighting & Axle Bearings
  • Pre-Tested Electrical System
  • Pre-Fitted Chassis Components
  • 1 Instruction Manual & Registration Documentation
  • Total Shipment: 14 Cartons
  • Product Ships by Truck Freight

Malone MegaSport Low Bed Trailer Assembly Instructions

Malone Trailer Maintenance Manual

Malone Trailer Specifications
