- Overview Overview The EcoLight is Malone’s most affordable line of kayak trailers. Proudly designed and built in the USA with high-grade galvanized steel for years of use, EcolLight trailers can safely travel at mos...
- Technical Specifications Technical Specifications
SKU: ARR_MATECOLBASE
MPN: MPG585

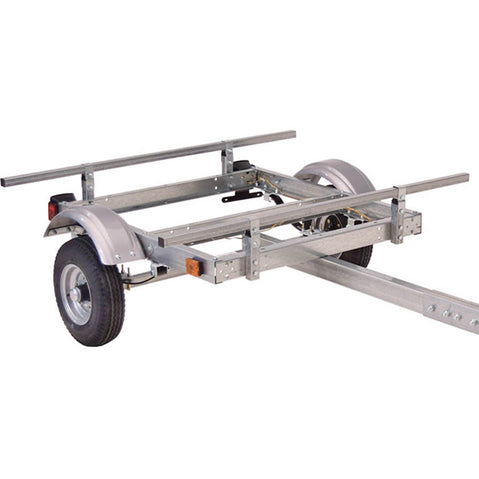

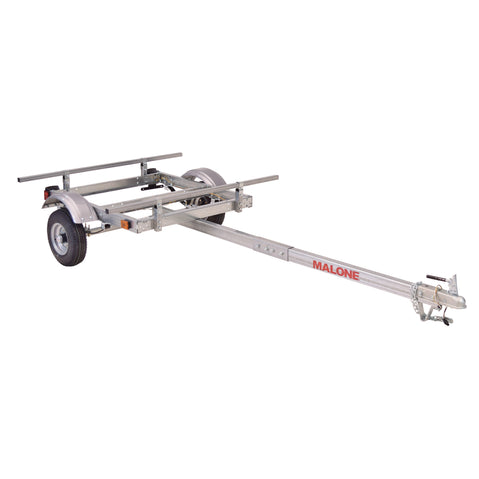

The EcoLight is Malone’s most affordable line of kayak trailers. Proudly designed and built in the USA with high-grade galvanized steel for years of use, EcolLight trailers can safely travel at most posted speed limits while transporting your load to your next adventure.

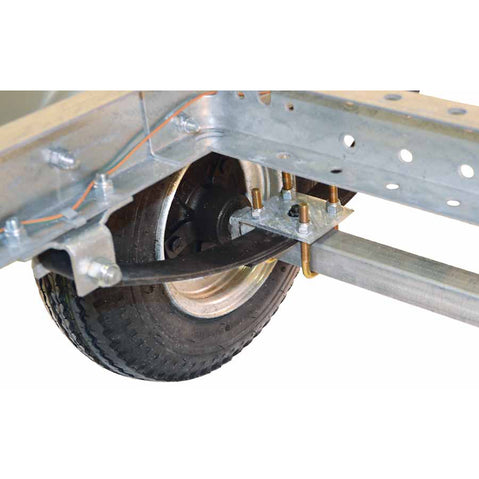

- Galvanized heavy-duty axle & leaf spring suspension deliver a smooth stable ride under full load
- Marine-grade galvanized steel frame for years of dependable service

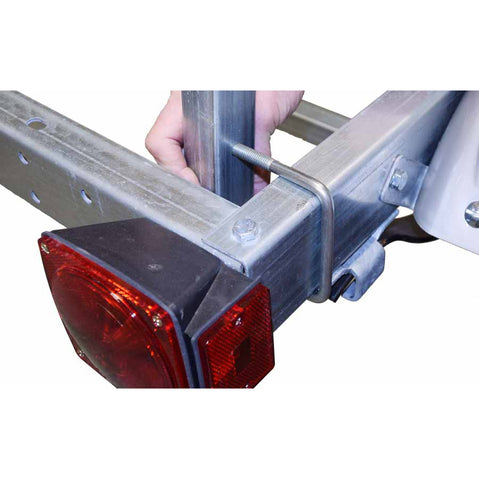

- DOT-approved submersible incandescent lighting
- Powder-coated 5-lug high-speed wheels and injection-molded fenders

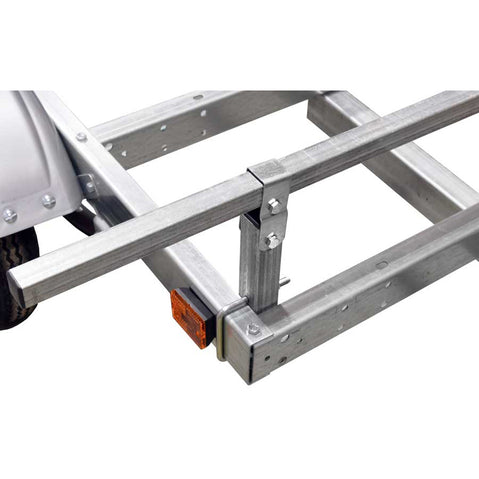

- Coated steel load bars fit most manufacturer’s kayak carriers
- Flat four wire harness
- Reinforced extra-long tongue with lift handle and tongue skid plate
- Made in the USA
- All parts and workmanship are guaranteed with a manufacturer 5-year limited warranty
Please Note: Some brands may not be shipped internationally. This item can only be shipped to U.S. addresses. We would love to ship the item, please be sure the address provided upon checkout is within the U.S. Otherwise, we will contact you via email to advise that your order has been canceled due to the shipping restriction.
Technical Specifications

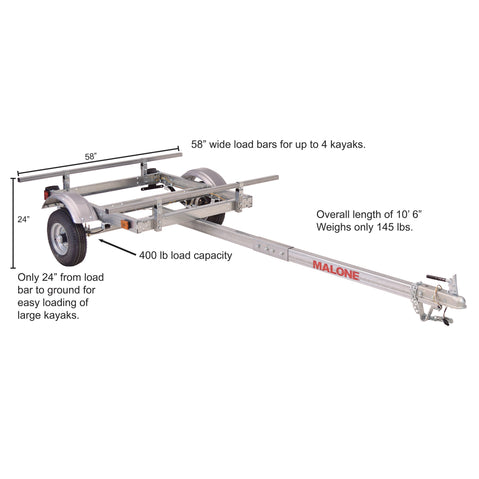

Weight Capacity | 400 lbs. |
Maximum Recommended Kayak/Canoe/SUP Length | 14' |
Frame & Tongue Material | Marine-grade pre-galvanized 11 gauge steel |
Crossbar Material | Pre-galvanized 14 gauge steel |
Crossbar Width | 58" |
Crossbar Diameter | 1.25" square |
Crossbar Spread | 38.5" |
Crossbar Height (From Ground) | 26" |
Hitch Ball Size | 2" |
Wiring Harness | Flat 4 connection |
Tongue Height | 14" |
Tongue Weight | 12 lbs. |
Tire Size | 4.80 / 4.00 x 8" diameter |
Maximum Speed Rating | 65 MPH |
Recommended Tire Pressure | 40 PSI |
Trailer Dimensions | 10' 9" L x 58" W |
Trailer Width (Without Crossbars) | 55" |
Frame Width | 40" |
Trailer Weight | 145 lbs. |

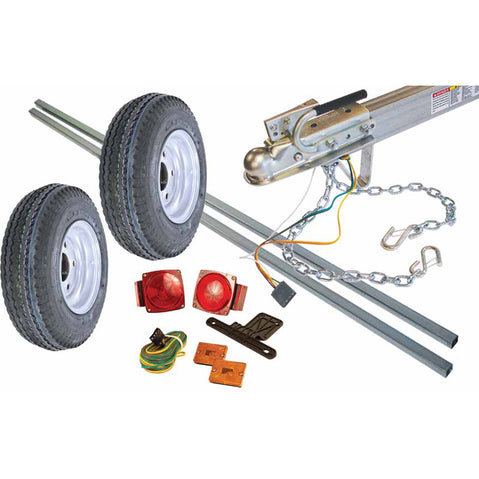

What’s In The Boxes (3 Cartons Total):
- 1 EcoLight trailer frame (assembly required)
- 2 Load bars with frame brackets & supports
- 2 Tires & wheels
- 1 2-piece extended tongue
- DOT & Transport Canada approved incandescent lighting & bearing
- Pre-tested electrical system
- Pre-fitted chassis components
- Instruction manual & registration documents
