Product title: Harken 4-Point Hoister Storage System
SKU: ARR_HNHO4-16-060

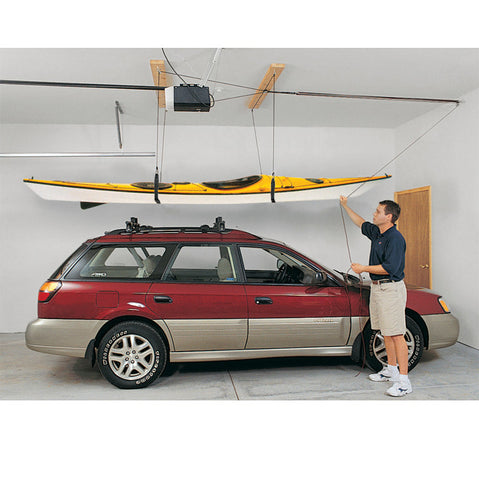

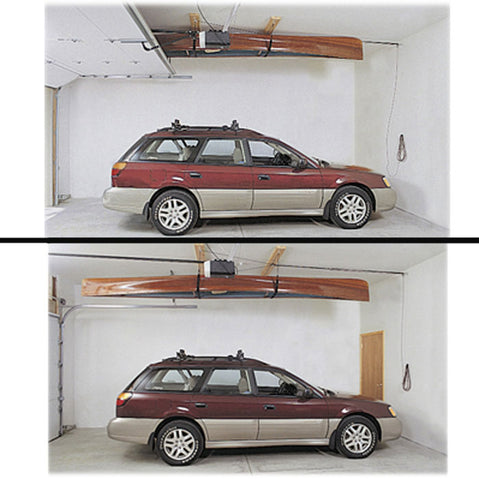

The Harken 4-Point Hoister System will give you the extra storage you need in your garage or studio space. Now you can store your canoe and kayak up and out of the way without breaking your back. Designed for one-person operation, it raises and lowers with a single control rope.

  • One person operation w/ single control rope
  • Four point pulley system
  • Patented design lifts & lowers loads evenly
  • Self-locking safety cleat grips instantly if rope accidentally released

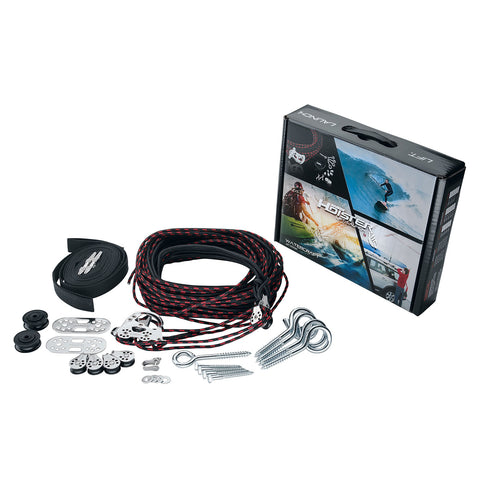

  • All hardware included for easy installation
  • Perfect for lifting a kayak, canoe, car top, etc.
  • Made in the USA

Technical Specifications

Lifting
Points
Working
Load Limit
Minimum
Lifting Load
Maximum
Vertical Lift
Mechanical
Advantage
4 60 lbs  (27 kg) 15 lbs (7 kg) 10' (3.05 m) 3:1
4 90 lbs  (41 kg) 25 lbs (11 kg) 10' (3.05 m) 4:1
4 145 lbs (66 kg) 45 lbs. (20 kg) 10' (3.05 m) 6:1
4 60 lbs  (27 kg) 15 lbs (7 kg) 16' (4.90 m) 3:1
4 90 lbs  (41 kg) 25 lbs (11 kg) 16'  (4.90 m) 4:1
4 145 lbs. (66 kg) 45 lbs (20 kg) 16' (4.90 m) 6:1
4 200 lbs. (91 kg) 75 lbs. (34 kg) 10' (3.05 m) 8:1
4 200 lbs. (91 kg) 75 lbs. (34 kg) 12' (3.66 m) 8:1
