- Overview Overview The DMM Climbing Alloy Offsets Nuts protect irregular and flared cracks that regular nuts cannot. The wires they are mounted on are set into a recess to reduce wear, while larger sizes have holes t...
- Technical Specifications Technical Specifications
Product title: DMM Climbing Alloy Offset Nuts
SKU: ECL_DMPNALLOFFIND_23-007
SKU: ECL_DMPNALLOFFIND_23-007
The DMM Climbing Alloy Offsets Nuts protect irregular and flared cracks that regular nuts cannot. The wires they are mounted on are set into a recess to reduce wear, while larger sizes have holes that reduce weight.
- Asymmetrical taper gives stable placements in offset cracks
- Allows placement in two orientations for increased versatility
- Grooved faces improve security in irregular rock
- Passive protection works in wet and icy conditions
- Color coded based on size for quick and easy selection
Technical Specifications
Size | Color | Range | Strength | Weight |

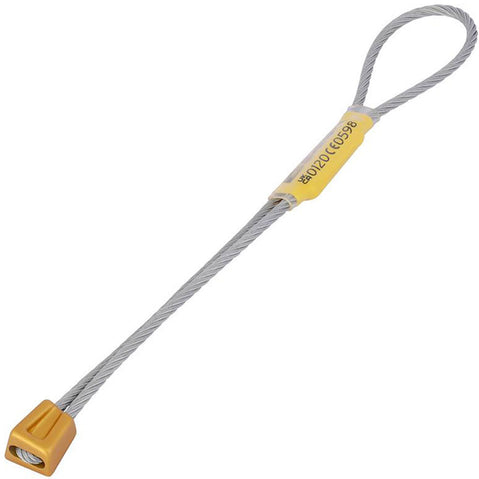

7 | Gold | 12.0 (15.1mm) | 12kN | 27 g |

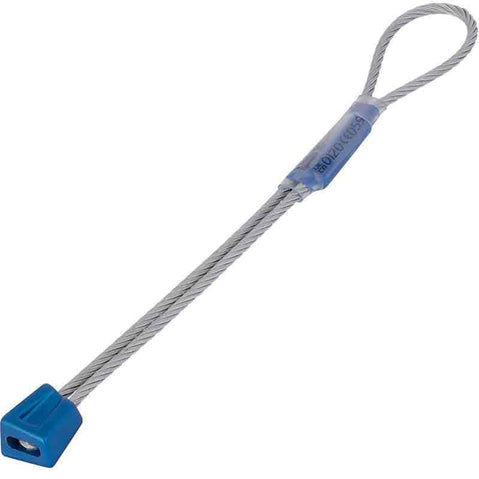

8 | Blue | 13.5 (17.9mm) | 12kN | 30 g |

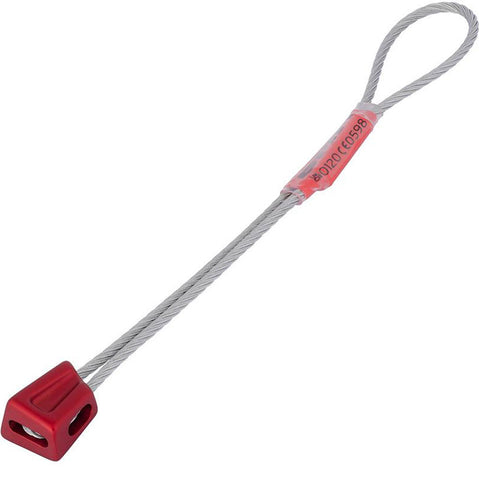

9 | Red | 17.1 (21.4mm) | 12kN | 37 g |
10 | Gray | 19.4 (25.1mm) | 12kN | 45 g |

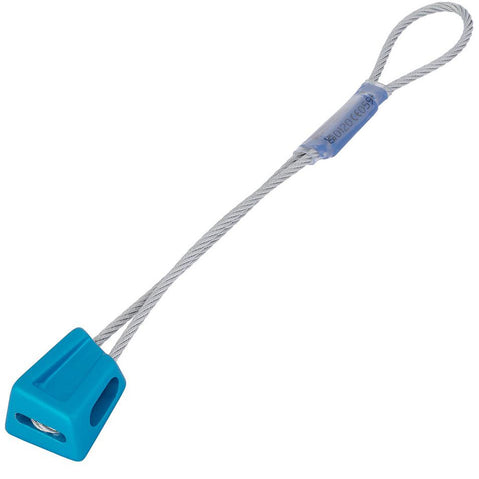

11 | Turquoise | 23.2 (30.0mm) | 12kN | 56 g |
