- Overview Overview The Goal Zero Boulder 200 Briefcase Solar Charging Kit is a dependable charging solution for your gears and gadgets. The Boulder 200 charging system is designed for maximum portability during your ...
- Technical Specifications Technical Specifications
SKU: ACA_GZBOULDBC200CC
The Goal Zero Boulder 200 Briefcase Solar Charging Kit is a dependable charging solution for your gears and gadgets. The Boulder 200 charging system is designed for maximum portability during your expeditions and adventures. The solar panels utilizes sunlight efficiently and can be used anywhere.
- Foldable briefcase design for easy storage while traveling
- Dual solar panels chained together & connected by a hinge efficiently collect energy from the sun
- Charge your smartphone, tablets, laptops anytime or pair with a power bank
- Pre-installed 20A charge controller monitors and regulates solar input for 12V batteries
- Built-in kick stands enable positioning for optimal sunlight collection
- Included protective canvas bag for hassle-free carrying
- Built with strong tempered glass and an aluminum frame with added corner protection
- Rugged design endures rough handling during adventures
- 2-year manufacturer warranty against defects in materials or workmanship
Technical Specifications
Ports:
High Power Port | 14 - 22V, up to 14A (200W max) |
Solar Input Port (High Power Port) | 14 - 23V, up to 14A |
Fuse | 25A replaceable |
Solar:
Rated Power | 200 Watts |
Open Circuit Voltage (Voc) | 21.8V |
Maximum Power Point Voltage (Vmpp) | 18.1V |
Cell Type | Monocrystalline |
Battery:
Charge Controller | PWM |
Rated Solar Panel Amps GZ-10 | 20A |
Normal Input Solar Cell Array Voltage | 15 - 22V |
Max Solar Cell Array Voltage (Output Has No Load) | 25V |
Lowest Operating Voltage At Solar Or Battery Side | 8V minimum |
Start Voltage at 25 C | 3 - 10 V |
LTO Battery | 14.0V |
Gel Battery | 14.1V |
LiFePO4 battery | 14.4V |
Charge Voltage at 25° C (AGM Battery) | 14.4V |
Charge Voltage at 25° C (WET Battery) | 14.7V |
Charge Voltage at 25° C (Calcium Battery) | 14.9V |
Equalizing Voltage at 25° C (WET or Calcium Battery) | 15.5V |
Float Voltage at 25° C (Gel AGM, WET, Calcium Batteries) | 13.6V |
Float Voltage at 25° C (LTO and LiFePO4 Batteries) | 13.4V |
Battery Temperature Compensation Coefficient | -24mV/C |
General:
Weight | 44.45 lbs. (20.16 kg) |
Dimensions (Folded) | 40" x 26.75" x 3.5" (101.6 x 70 x 8.9 cm) |
Dimensions (Unfolded) | 40" x 53.5" x 1.75" (101.6 x 140 x 4.4 cm) |
Cable Length (Spade to HPP) | 3' |
Cable Length (Spade to SAE) | 15' |
Cable Length (SAE to Ring) | 23" |
Cable Length (SAE to Alligator) | 29" |

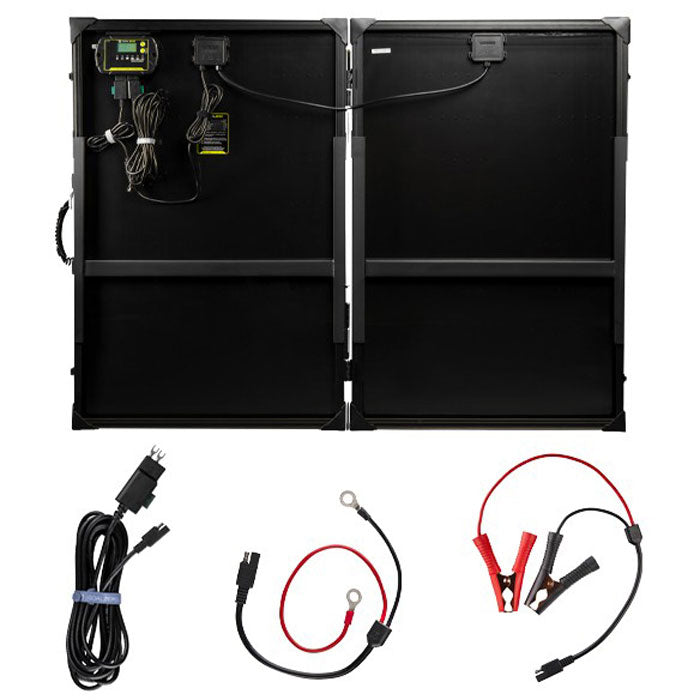

What's Included:
- Boulder 200 Solar Panel Briefcase with cord and Built-in kickstand
- Canvas Carrying Bag
- 20 Amp Charge Controller
- Boulder Charge Controller Mounting Bracket
- Spade to HPP Cable
- Spade to SAE Cable
- SAE to Ring Terminal
- SAE to Alligator Clip
