- Overview Overview The Goal Zero Boulder 100 Briefcase Solar Charging Kit is a dependable charging solution for your gears and gadgets. The Boulder 100 charging system is designed for maximum portability during your ...
- Technical Specifications Technical Specifications
SKU: ACA_GZBOULDBC100CC
MPN: 44210
The Goal Zero Boulder 100 Briefcase Solar Charging Kit is a dependable charging solution for your gears and gadgets. The Boulder 100 charging system is designed for maximum portability during your expeditions and adventures. The solar panels utilize sunlight efficiently from almost anywhere.
- Foldable briefcase design for easy storage while traveling
- Dual solar panels chained together & connected by a hinge efficiently collect energy from the sun
- Charge your smartphone, tablets, laptops anytime or pair with a power bank
- 10A charge controller monitors and regulates solar input for 12V batteries
- Built-in kick stands enable positioning for optimal sunlight collection
- Included protective canvas bag for hassle-free carrying
- Built with strong tempered glass and an aluminum frame with added corner protection
- Rugged design endures rough handling during adventures
- 2-year manufacturer warranty against defects in materials or workmanship
Technical Specifications
Ports:
Solar Port | Blue 8mm: 14-21.5V, up to 7A (100W max) |
Input/Output Terminals | M5 |
Fuse | 25A replaceable |
Solar:
Rated Power | 100 Watts |
Open Circuit Voltage (Voc) | 21.5V |
Maximum Power Point Voltage (Vmpp) | 17.2V |
Cell Type | Monocrystalline |
Battery:
Charge Controller | PWM |
Rated Solar Panel Amps GZ-10 | 10A |
Normal Input Solar Cell Array Voltage | 15 - 22V |
Max Solar Cell Array Voltage (Output Has No Load) | 25V |
Lowest Operating Voltage At Solar Or Battery Side | 8V minimum |
Start Voltage at 25° C | 3 - 10V |
LTO Battery | 14.0V |
Gel Battery | 14.1V |
LiFePO4 battery | 14.4V |
Charge Voltage at 25° C (AGM Battery) | 14.4V |
Charge Voltage at 25° C (WET Battery) | 14.7V |
Charge Voltage at 25° C (Calcium Battery) | 14.9V |
Equalizing Voltage at 25° C (WET or CalciumBattery) | 15.5V |
Float Voltage at 25° C (Gel AGM, WET, CalciumBatteries) | 13.6V |
Float Voltage at 25° C (LTO and LiFePO4Batteries) | 13.4V |
Battery Temperature Compensation Coefficient | -24mV/C |
General:
Weight | 28.25 lbs. (20.16 kg) |
Dimensions (Folded) | 26.75" x 21.75" x 3.75" (70 x 55.2 x 8.9 cm) |
Dimensions (Unfolded) | 26.75" x 43.5" x 1.75" (70 x 110.4 x 4.4 cm) |
Cable Length (Spade to 8mm) | 3' |
Cable Length (Spade to SAE) | 15' |
Cable Length (SAE to Ring) | 23" |
Cable Length (SAE to Alligator) | 29" |

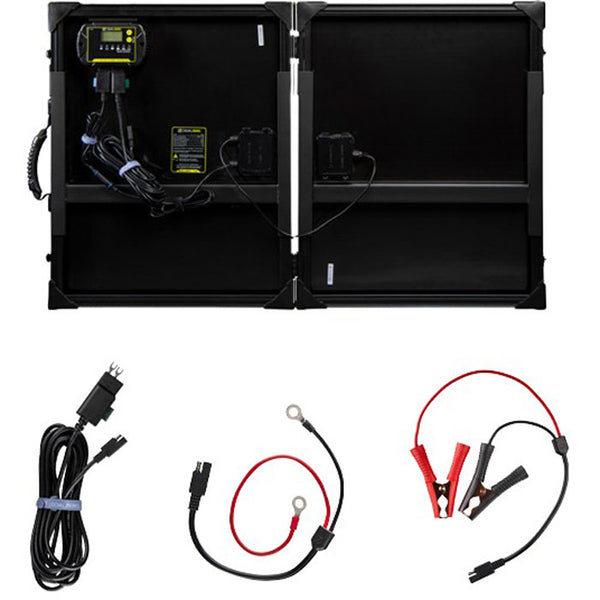

What's Included:
- Boulder 100 Solar Panel Briefcase with cord and Built-in kickstand
- Canvas Carrying Bag
- 10A Charge Controller
- Boulder Charge Controller Mounting Bracket
- Spade to 8mm Cable
- Spade to SAE Cable
- SAE to Ring Terminal
- SAE to Alligator Clip
Overview
Product title: Goal Zero Boulder 100 Briefcase Solar Charging Kit
SKU: ACA_GZBOULDBC100CC
MPN: 44210
The Goal Zero Boulder 100 Briefcase Solar Charging Kit is a dependable charging solution for your gears and gadgets. The Boulder 100 charging system is designed for maximum portability during your expeditions and adventures. The solar panels utilize sunlight efficiently from almost anywhere.
- Foldable briefcase design for easy storage while traveling
- Dual solar panels chained together & connected by a hinge efficiently collect energy from the sun
- Charge your smartphone, tablets, laptops anytime or pair with a power bank
- 10A charge controller monitors and regulates solar input for 12V batteries
- Built-in kick stands enable positioning for optimal sunlight collection
- Included protective canvas bag for hassle-free carrying
- Built with strong tempered glass and an aluminum frame with added corner protection
- Rugged design endures rough handling during adventures
- 2-year manufacturer warranty against defects in materials or workmanship
Technical Specifications
Ports:
Solar Port | Blue 8mm: 14-21.5V, up to 7A (100W max) |
Input/Output Terminals | M5 |
Fuse | 25A replaceable |
Solar:
Rated Power | 100 Watts |
Open Circuit Voltage (Voc) | 21.5V |
Maximum Power Point Voltage (Vmpp) | 17.2V |
Cell Type | Monocrystalline |
Battery:
Charge Controller | PWM |
Rated Solar Panel Amps GZ-10 | 10A |
Normal Input Solar Cell Array Voltage | 15 - 22V |
Max Solar Cell Array Voltage (Output Has No Load) | 25V |
Lowest Operating Voltage At Solar Or Battery Side | 8V minimum |
Start Voltage at 25° C | 3 - 10V |
LTO Battery | 14.0V |
Gel Battery | 14.1V |
LiFePO4 battery | 14.4V |
Charge Voltage at 25° C (AGM Battery) | 14.4V |
Charge Voltage at 25° C (WET Battery) | 14.7V |
Charge Voltage at 25° C (Calcium Battery) | 14.9V |
Equalizing Voltage at 25° C (WET or CalciumBattery) | 15.5V |
Float Voltage at 25° C (Gel AGM, WET, CalciumBatteries) | 13.6V |
Float Voltage at 25° C (LTO and LiFePO4Batteries) | 13.4V |
Battery Temperature Compensation Coefficient | -24mV/C |
General:
Weight | 28.25 lbs. (20.16 kg) |
Dimensions (Folded) | 26.75" x 21.75" x 3.75" (70 x 55.2 x 8.9 cm) |
Dimensions (Unfolded) | 26.75" x 43.5" x 1.75" (70 x 110.4 x 4.4 cm) |
Cable Length (Spade to 8mm) | 3' |
Cable Length (Spade to SAE) | 15' |
Cable Length (SAE to Ring) | 23" |
Cable Length (SAE to Alligator) | 29" |
What's Included:
- Boulder 100 Solar Panel Briefcase with cord and Built-in kickstand
- Canvas Carrying Bag
- 10A Charge Controller
- Boulder Charge Controller Mounting Bracket
- Spade to 8mm Cable
- Spade to SAE Cable
- SAE to Ring Terminal
- SAE to Alligator Clip
